SE72H
Specifications
· Output: 4 to 20mA
· Supply voltage: 9-45VDC
· Operation: PC programmable or PDA
· Operating temperature range: -40-85℃
· Humidity (non-condensing): 0 to 95%RH
· Dimension: Φ64mm

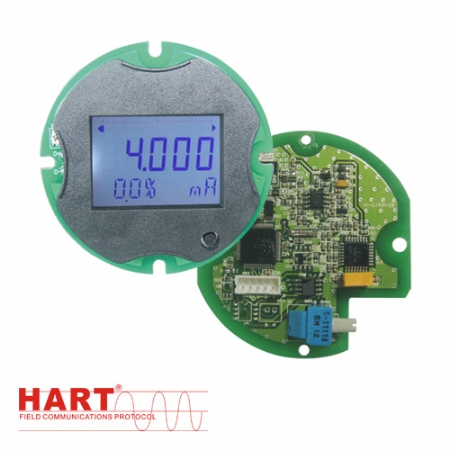

SENSE series SE72H OEM board with HART-protocol is suitable for Multi-sensors. SE72H can accept signal of 3051/1151 Metal capacitive with preamplifier. SE72H is the Intrinsic Safe version for use in Ex-applications. SE72H can be freely programmed via adjustment screw and push-button. Following parameters can be adjusted: zero, span, damping, display mode and so on.The backlight display(necessary) can rotate through 90ºsteps.
Performance
* Wide voltage supply range:9-45VDC
* Self stability and filter setup:Improve transmitter stability
* Freely linearity and temperature compensation:Min. 2 points, max. 11 points
* Self-learning function:Acceptability 1.5mV-4.8V signal input
* Popular sensors acceptable:E.g. Pressure, load cells magnetic float ball, strain gauge etc.
* Backup and restore data:Convenient for using on the locale
* Excellent EMC performance:Suitable for harsh conditions
Application
The SE72H may be used for various measure sensor:
-pressure sensors
-differential sensors (3051/1151 Metal Capacitive with preamplifier)
-load cells
-magnetic field sensors
-strain gauge
- resistor of 2/3/4wires
Technical data
* Output: 4 to 20mA
* Supply voltage: 9-45VDC
* Operation: PC programmable or PDA
* Operating temperature range: -40-85℃
* with display: -20-70℃
* Humidity (non-condensing): 0 to 95%RH
* Dimension: Φ64mm
* With rotated through 90° steps display
