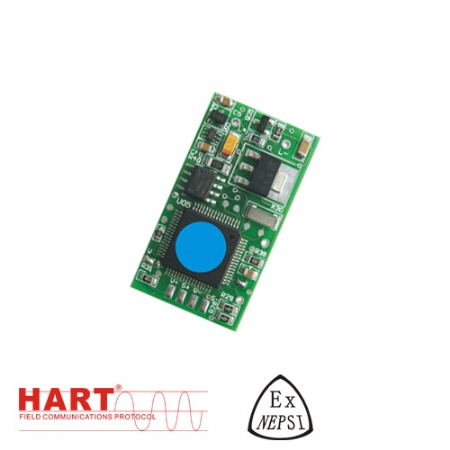

SE12H
Specifications:
Input: all of toxic and electrochemical gas sensors and pressure sensor, load cell, strain gauge, magnetic field sensor, differential pressure sensor, resistor of 2/3/4 wires etc.
SE12H With HART protocol
• Input: all of toxic and electrochemical gas sensors and pressure sensor, load cell, strain gauge, magnetic field sensor, differential pressure sensor, resistor of 2/3/4 wires etc.
• Output: 4-20mA
• Supply voltage: 9-45VDC
• Operation: PC programmable or PDA
• Operating temperature range: -40-85℃
• Humidity (non-condensing): 0 to 95%RH
• Dimensions: 19.2*35mm
• Multifunction solution for gas, pressure, level, load cell, strain gauge and magnetic field sensor and etc
• Minimized structure style (others on request)
• Freely linearity and temperature compensation
• Excellent stability
• Convenient installation and operation
• High accuracy, fast response
• Excellent EMC performance
Input: all of toxic and electrochemical gas sensors and pressure sensor, load cell, strain gauge, magnetic field sensor, differential pressure sensor, resistor of 2/3/4 wires etc.
SE12H With HART protocol
• Input: all of toxic and electrochemical gas sensors and pressure sensor, load cell, strain gauge, magnetic field sensor, differential pressure sensor, resistor of 2/3/4 wires etc.
• Output: 4-20mA
• Supply voltage: 9-45VDC
• Operation: PC programmable or PDA
• Operating temperature range: -40-85℃
• Humidity (non-condensing): 0 to 95%RH
• Dimensions: 19.2*35mm
• Multifunction solution for gas, pressure, level, load cell, strain gauge and magnetic field sensor and etc
• Minimized structure style (others on request)
• Freely linearity and temperature compensation
• Excellent stability
• Convenient installation and operation
• High accuracy, fast response
• Excellent EMC performance
