TMT101
Specifications:
•Compact design
•Expanded resistance input
•Expanded voltage input
•Input: RTD, TC, Ohm, mV

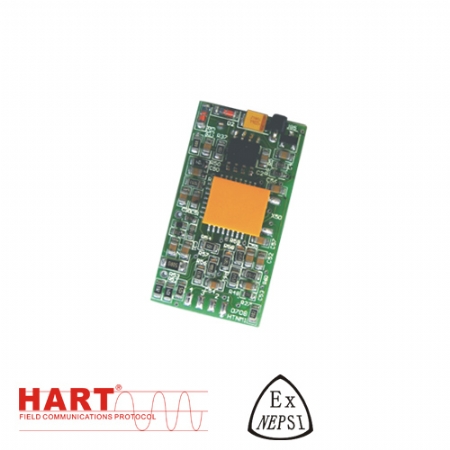

OEM Temperature Transmitter Module HART TMT101
OEM Temperature transmitter Module with HART-protocol for converting various input signals into a scalable 4 to 20mA analogue output signal.
Performance
* Universal settings with HART-protocol for various input signals
* 2 wire technology, 4 to 20mA analogue output
* High accuracy in total ambient temperature range
* Compact design
* Wide voltage supply range
* An internal temperature sensor for active temperature compensation(For T/C)
* Customer specific measurement range setting or expanded SETUP
Areas of application
*OEM Temperature Transmitter Module with HART-protocol for Convert various input signals into a scalable 4 to 20mA analogue output signal
*Input
Resistance thermometer(RTD)
Thermocouple(TC)
Resistance transmitter(ohm)
Voltage transmitter(mV)
Technical data
*Output: 4 to 20mA
*Supply voltage: 7.5 to 45VDC
*Input: RTD, TC, Ohm, mV
*Accuracy(Pt100): <0.2K or 0.08%
*Cold junction: Internal
*Galvanic isolation: 2 KVAC(In/Out)
*Influence of ambient: Negligible
*Load influence: Negligible
*Power supply influence: Negligible
*Resolution: 0.3uA
*Operation: HART-protocol
*Dimensions: 18.5mm×34mm
*Weight: approx. 5.25g
