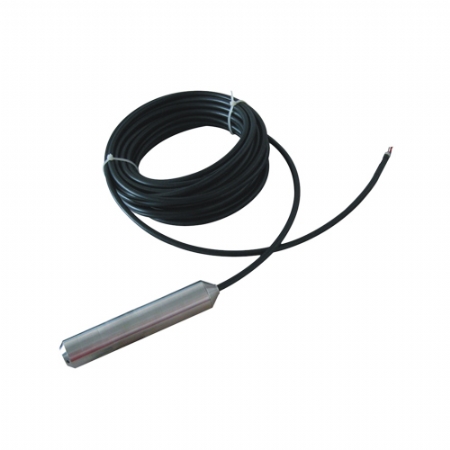

STK633S
Specifications:
1. Measuring: 0 ~10mmH2O ~20mH2O
2. Sensor: Silicon sensor
3. Output: 4 ~20mA, 1~5V
4. Supply voltage: 12~45V
5. Accuracy: 0.2%, 0.25%, 0.5%,
Application conditions:
* Humidity: 5...98%
* Ambient and operation: -30-85ºC (without display), -20-70ºC (with display)
* Compensated temperature range of sensor: -30...80ºC
* Storage: -30-85 ºC
* Ingress protection: IP 68
* Electromagnetic compatibility(EMC): Interference immunity and interference emission according to GB/T17626.2-1998), compliance with IEC 61000-4-3: 1995.
| Supply voltage: | 12...45 VDC | |||
| Output | 4...20 mA +HART protocol digital communication | |||
| 3-wire-system (optional): 1...5V | ||||
| Signal range: | 3.8mA...22.8mA | |||
| Accuracy | Nominal range 0.2% | |||
| 0.25% accuracy for range trundown 1.5: 1 | ||||
| 0.5% accuracy for range trundown 2: 1 | ||||
| Power supply effect: | Negligible | |||
| Vibration effect: | < 0.01% of URL /g when tested 200Hz in any axis relative | |||
| Thermal effect: | & plusmn; 0.15%/10K(-20~+70& ordm; C); | |||
| Permissible load: | & le; 50(V-12)Ω | |||
| stability: | 0.1% FSO/Year | |||
| Switch on delay: | 5s | |||
| Damping: 0 to 100s, step: | 0.1s | |||
| Response time: | 200 ms (without consideration of electronic damping) | |||
| Self stability configuration: | 0 to 2% | |||
| Filter configured: | 0 to 160 uA | |||
| Communication resistance for HART Protocol: | 250 Ω | |||
| Insulation resistance: | > 250MΩ | |||
| Short-Circuit protection: | Permanent | |||
| Reverse polarity protection: | No damage, and no function | |||
| Overvoltage protection: | 500 V | |||
| Vibration effect: | < 0.01% of URL /g, when tested 200Hz in any axis relative | |||
