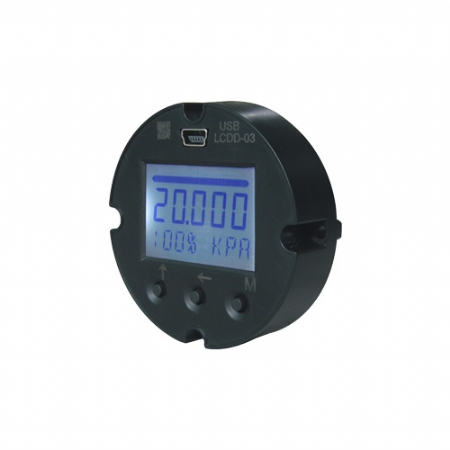

Specifications:
1. With white backlight display, visible in the dark environment.
2. 2-wire, no additional power supply required
3. High accuracy and stability
4. Many kinds of units can be displayed, such as mA, us, PH, Mbar, ect. (Further versions are possible on request. )
5. 2 OPTO switches output
Performance:
* No additional power supply required
* Compact design
* Easy programming with Push buttons
* Reverse Polarity
* Low power consumption
* 16 Bit ADC MCU inside
* LCD can work at 3mA
* Many kinds of the units can be displayed
Technical data Display:
* Type: Visible range 32.5X22.5mm; 5-digit 7-segment main display, digit height 8mm, 8-digit 14-segment additional display, digit height 5mm; 52bars meter with 2% resolution
* Range: -9.9.9.9. To 9.9.9.9.9.
* LCD can work on 3mA
| Accuracy: | 0.1%& plusmn; 1 digit | |||
| Digital damping: | 0 to 100 s(step 0.1 s) | |||
| Units: | mA, us, ms, s, PH, & ordm; F, & ordm; C, PSI, MPa, bar, kPa, mbar, Pa, % etc. | |||
| Supply: | Not required, 4 to 20mA loop powered | |||
| Voltage drop: | & le; 3.1V | |||
| Short-circuit protection: | Permanent | |||
| Reverse polarity protection: | Max. current: approx. 200mA | |||
| Ambient temperatures: | Operating: -30 to 70℃ Storage: -40 to 70℃ | |||
| Display housing: | ABS | |||
| Weight: | Approx. 28g | |||
| Ingress protection: | IP 65(when mounted) | |||
| Color of housing: | Black | |||
