Specifications
• Supply voltage: 5…30 VDC
• Bridge resistance: 11± KΩ
• Zero point: ±0.2 mV/V
• Range: 2.0…4.8mV/V
• Accuracy(linearity, hysteresis and repeatability) : <=±0.4%FS
• Stability: ±0.3 %FS/y
• Process temperature range: -40-135℃
• Compensated temperature: 0…70℃
• Dimensions(Φ*H): 18.0*6.2…7.55mm(depending on measuring range)

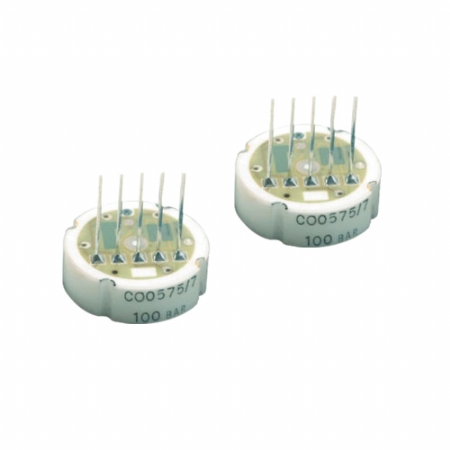

Ceramic Piezoresistive sensor CPS181
The CPS181 are piezoresistive pressure sensors based on ceramic. The measuring bridge is printed directly on one side of the ceramic diaphragm. The rear part of the diaphragm can be exposed directly to the medium to be measured.
Performance
Easy mounting
Temperature compensation directly on the sensor
Low price
Excellent resistance to corrosion and abrasion
Excellent chemical resistance
Thermal compensated by laser adjustable PTC-resistors
Technical data
Supply voltage: 5…30 VDC
Range: gauge 0…1bar/0…600bar
absolute 0...1bar/0...50bar
Bridge resistance: 11± KΩ
Zero point: ±0.2 mV/V
Range: 2.0…4.8mV/V
Accuracy(linearity, hysteresis and repeatability) : <=±0.4%FS
Stability: ±0.3 %FS/y
Process temperature range: -40-135℃
Compensated temperature: 0…70℃
Dimensions(Φ*H): 18.0*6.2…7.55mm(depending on measuring range)
