Specifications:

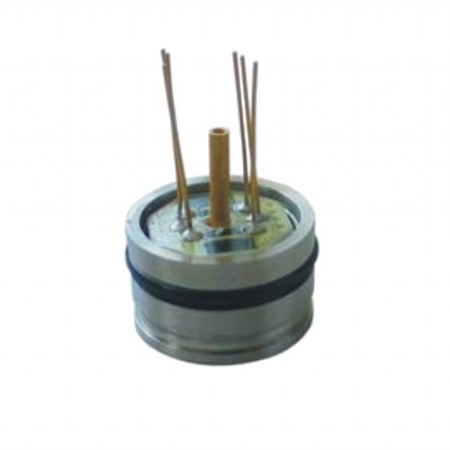

Stainless Steel Pressure Sensor SPS19
• High overload ability
• Excellent linearity
• Excellent repeatability
• Long term stability
• Simple assembly and signal processing
• Smallest dimensions
• High medium compatibility
• Long operating life
SPS19 a stainless steel diaphragm is welded in the front of the forced surface of the sensitive element. The press is passed to silicon chip by silicon oil. So measure to all sorts of gaseous and liquid medium compatible with stainless steel and special rubber is completed.
Application Area
Process engineering
General measuring technique
Environment technique
Medical technology
Hydraulics and mechanical engineering
Technical data
Range: 35kPa(5Psi)~35MPa(1000Psi)
Non-linearity: ±0.2;±0.3(% of Span,BFSL)
Repeatability and Hysteresis: 0.1(% of span)
Zero output: 0±1(mV@1.5mA)
Span output: 100±30(mV@1.5mA)
Zero temperature error: ≤±1(% Span in ref,to25℃)
Span temperature error: ≤±1(% Span in ref,to25℃)
Compensated temperature range: 0-70℃
