DPS601
Specifications:
• Supply voltage: 5V
• Output:
Capacitive signal
Zero: ±130pF 10%
Range: ±250pF 10%
• Long term stability:
<0.1-0.2%/Year
• Process temperature range:-40 to 104°C

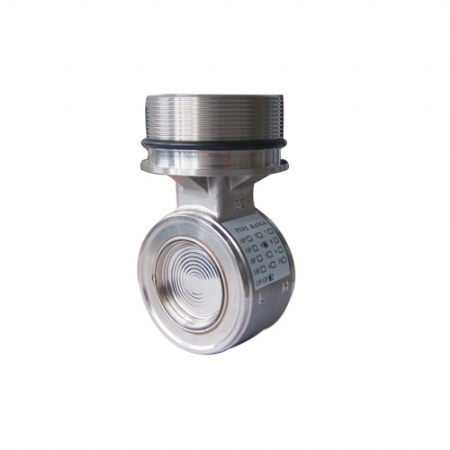

Differential Pressure Sensor DPS601
Performance
Resistant high overload and high static pressure
extremely long term stability
Minimum temperature and static pressure influence
Compact model
Simple to mounting
Application
Typical areas of use are:
Process Control
Differential pressure for deriving
flowrated (volumetric or mass flow),
level, mass or volume
Technical data
· Supply voltage: 5V
· Output:
Capacitive signal
· Zero: ±130pF 10%
· Range: ±250pF 10%
· Range: ±7.5KPa...±42MPa
· Long term stability:<0.1-0.2%/Year
· Process temperature range:-40 to 104°C
